Custom & Standard
Induction Heating Solutions

From simple single power supplies to comprehensive automated parts production systems, Taylor-Winfield has the solution to your heating application.
Quick Request
Induction heating provides a consistent, efficient, and focused solution for thermal processing of parts and components. Processing cycle times and energy usage can be significantly reduced when compared to other processes. Induction heating is also ideal for providing a stable and repeatable process to produce a high volume of parts with consistent quality.

As a system integrator, Taylor-Winfield Technologies offers a wide range of standard and custom induction heating solutions. From a standalone power supply to a fully automated, turn-key system, Taylor-Winfield Technologies is your go-to resource for a variety of thermal solutions.

Applications

Taylor-Winfield’s induction heating specialists have the experience to choose the right induction heating solution to meet your exact specifications. We offer a wide range of innovative induction heating applications for a variety of industries. Some of the most common induction applications are listed below, but we are leaders in developing custom solutions for our customer’s unique applications, including ones not shown below.

Heat-Treating

Heat-Treating

Harden, Temper, Anneal, Stress-Relieve Common application: Shafts, Pins, Fasteners, Fittings, Gears

Brazing & Soldering

Brazing & Soldering

Ferrous & Non-Ferrous Joints
Example: Valves, Electrical components, Compressors

Hot Forming, Forging

Hot Forming, Forging

Common application: Compressors, Rods, Cable, Bars, Structural Components

Melting

Melting

Example: Electrical Connections, Engine Components

Bonding/Heat-Stake

Bonding/Heat-Stake

Common application: Lights, Shafts, Medical Instruments

Process Heating

Process Heating

Example: Wire Processing, Lighting, Valves, Tubing, Switches

Don’t see your application listed here?

No problem! We build custom equipment all the time. Click the button below to talk to one of our induction heating specialists about your unique application.

Talk to a Specialist

Automation Integration

Some companies do induction heating, others do automation, but Taylor-Winfield does both. From semi-automated workstations to fully automated parts production systems, we can find an automated solution to achieve your part production goals. By adding automation to your production facility, you can dramatically improve the reliability, repeatability, accuracy and safety of your induction heating process. As a certified system integrator, we combine the latest innovative technologies to develop cutting-edge, world-class solutions for our customer’s manufacturing needs.

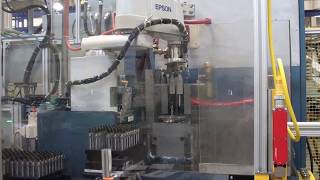

Multi-Zone
Automated Heating Station

In this work cell, four zones of the assembly are simultaneously heated to 1350 F to execute the braze of two outer parts onto the main body. The TLF induction power supplies provide each zone independent power and temperature control to prevent overheating.

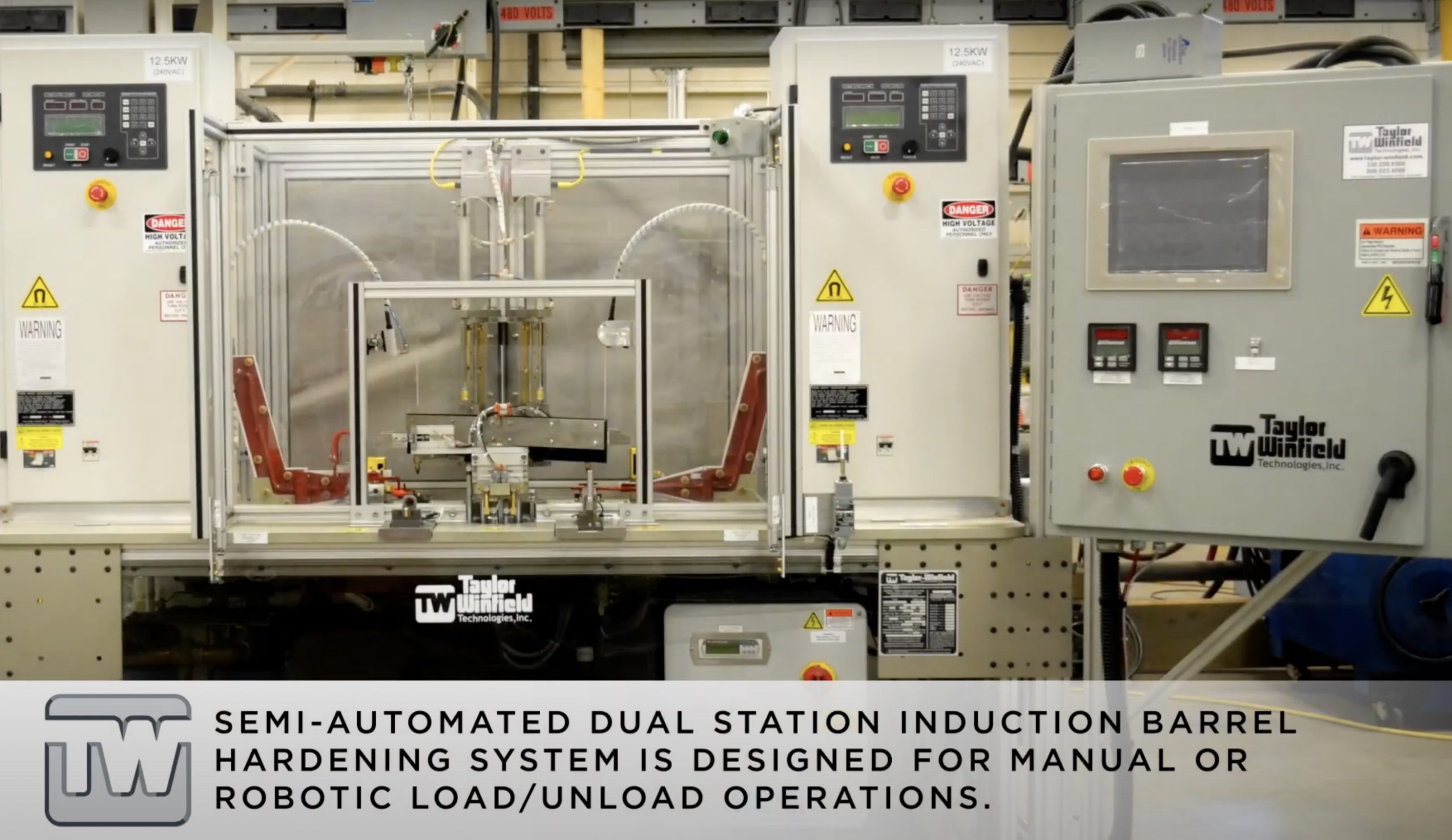

Semi-Automated Dual Station Induction Barrel Hardening System

In this semi-automated system, multiple sections of the gun barrel are induction heated, air & water quenched, and transported by automated grippers. Vision systems are used to ensure that the right temperatures are being reached throughout the heating process.

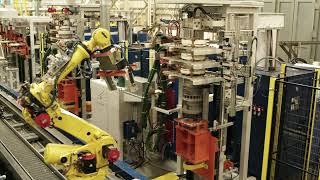

Induction
Heating and
Quenching

This process used to be loaded manually so we upgraded our customer’s system by automating the loading process and making it more flexible so that it could run any type of part without a lengthy changeover. Due to the variance in part size, the robot will automatically makes adjustments to the systems depending on what size part it needs to process.

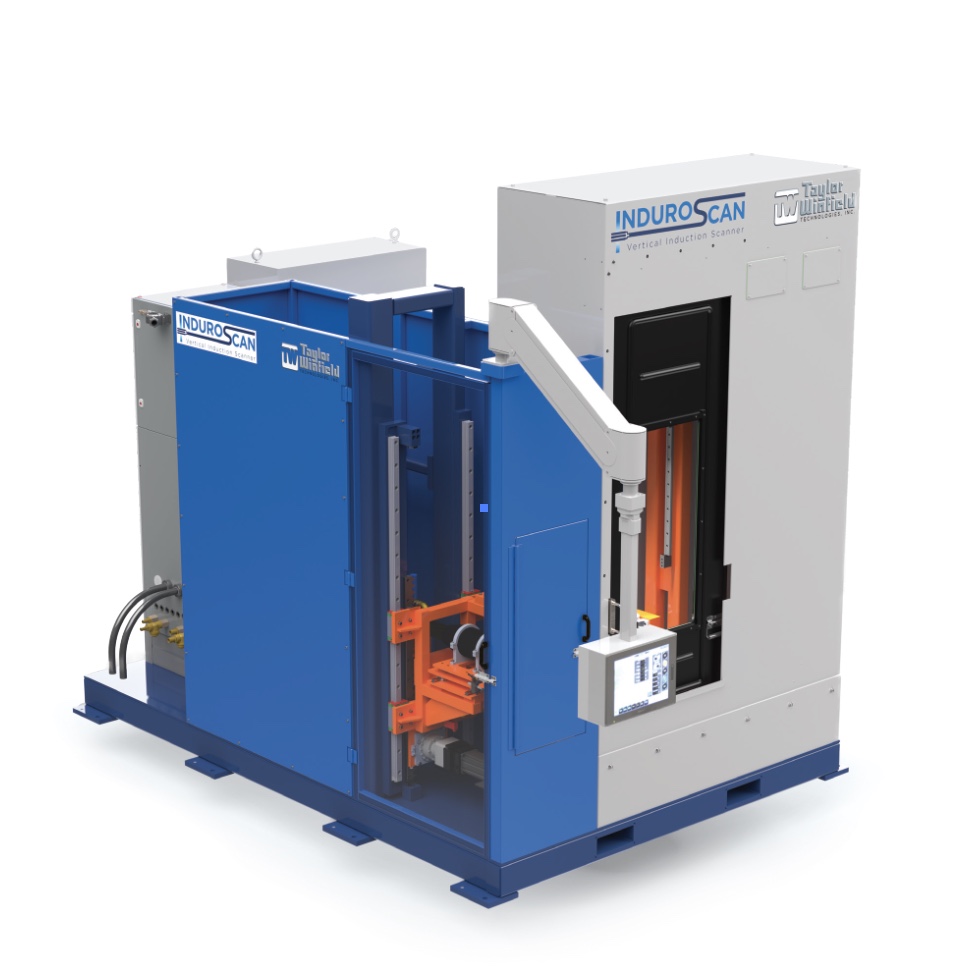

Vertical Induction Scanner

Taylor-Winfield has a long and substantial history of providing the highest quality induction heating machines to the heat-treating industry, and our vertical induction scanners are no exception. Designed with operators’ ease of use in mind, Taylor-Winfield’s latest breakthrough – the InduroScan – is a scalable vertical scanning platform that dramatically reduces cycle time through advanced positioning and motion technologies.
Benefits include:
  • Reduced cycle times by using advanced and motion technologies
  • Rapid part diameter changeover using quick change coil design utilizing SMED principles
  • Increasing system longevity with motion components and guidance systems isolated from quench area
  • Ergonomically designed for ease of operator interface
  • Easy to maintain with conveniently positioned components and maintenance access doors
  • Modular and scalable design allows for flexibility to meet your part and power requirements

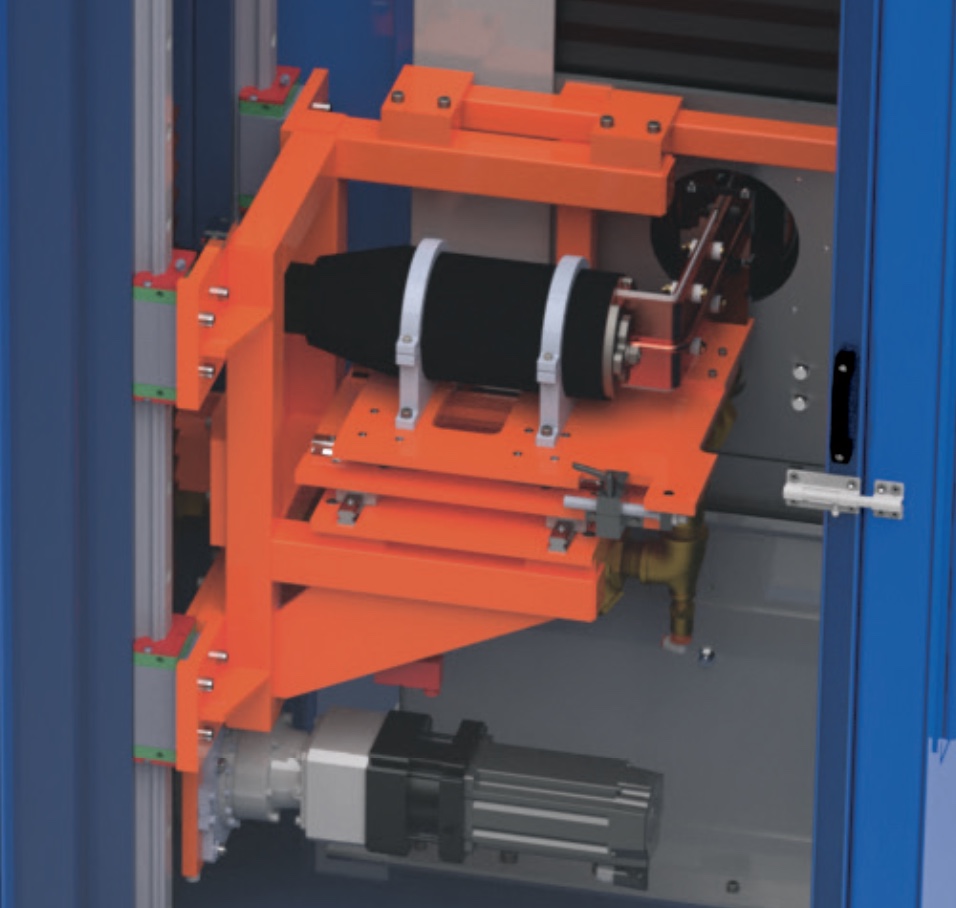

Isolated Drive System

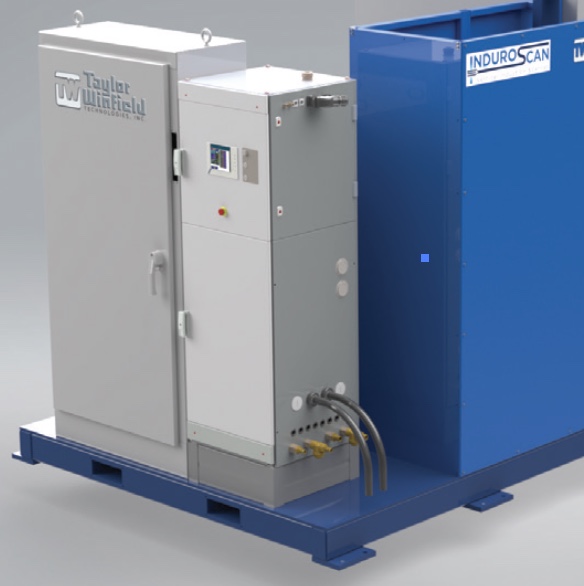

Power Supply

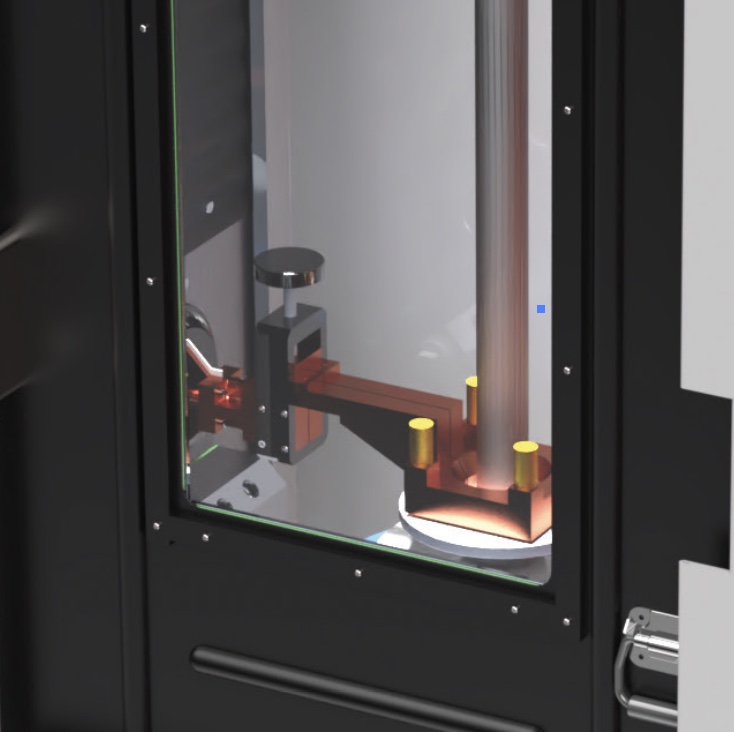

Scanning System

Work Stations

Taylor-Winfield’s induction heating workstations are tailored to your exact specifications and applications. We offer a very wide variety of workstations – from simple, single shot static heating stations to complex, progressive heating stations for high production volumes. Customers can choose between vertical for horizontal configurations, single for dual stations, as well as several other options. Are you in need of custom induction workstations? We would love to chat with you about your upcoming project.
Talk to an Induction Expert

Custom & Standard Power Supplies

Taylor-Winfield’s standard induction heating power supplies range from 1.5 kW to 1,500 kW in frequency with an operating frequency ranging from 1.0 kHz to 8.0 kHz. We also offer customized power supplies that can be configured to meet your electrical load requirements for a variety of applications. Check out our lineup of induction heating power supplies below and don’t hesitate to reach out to us if your power supply needs are outside the range of our standard offerings.

Transistor, Low Frequency
(TLF)

• High power, low frequency and large systems
• Power: 50 to 500 kW
• Frequency: 1.0 to 50 kHz
Request a Quote

Induction Medium / High Frequency
(IMF / IMH)

• Medium / high frequency and universal
• Power: 5.0 to 1,000 kW
• Frequency: 10 to 500 kHz
Request a Quote

Oscillator, High Frequency
(OHF)

• Traditional oscillator tube with a new design
• Power: 1.0 to 200 kW
• Frequency: 200kHz to 8.0mHz
Request a Quote

Mosfet, Multi-Frequency (MMF)

• Medium frequency with remote output
• Power: 7.5 to 40 kW
• Frequency: 135 to 400 kHz
Request a Quote

Custom Power
Supplies

Looking for a custom power supply solution? Contact us today with your specs and goal and we will let you know if it is within our capabilities.
Request a Quote

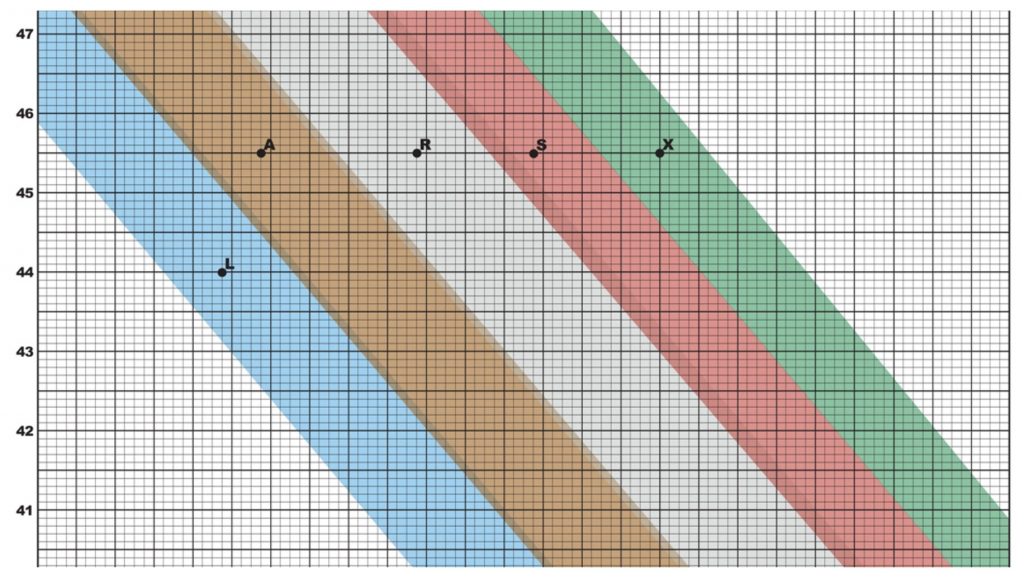

Frequency and Power Graph

Spare Parts

Are you in need of a spare part to keep you induction heating operation up and running? We build and stock a complete inventory of induction heating replacement parts and components here at Taylor-Winfield Technologies, including coils (standard and custom), circuit boards, transformers, capacitors, bus bars and more. Click the button below to submit a request for a quote on the spare part that you need.
Request a Quote

WHY OUR CUSTOMERS PARTNER WITH
TAYLOR-WINFIELD TECHNOLOGIES

As a Capital Equipment Manufacturer, we provide standard & custom engineered parts production solutions, all under one roof. From concept through engineering, assembly and test, we have the expertise, resources, and commitment to ensure quality equipment & total “life” support for all the equipment we manufacture.

Research & Development Laboratory

The Research and Development​ Center can help improve part quality, quantify existing processes, create reliable parts production expectations, and establish machine performance criterion.

Aftermarket Spare Parts & Copper Products

Taylor-Winfield’s Aftermarket Spare Parts & Copper Products Group provides “life support”, parts and ancillary equipment for existing machines worldwide.

Worldwide Field Service and Support

Taylor-Winfield’s technicians have mechanical, electrical, & programming skills, enabling them to provide timely, quality service, and to supervise or perform on-site machine evaluations, repairs, & upgrades.
